4 Passenger 72V Lithium Battery Off Road Electric Hunting Golf Cart LS2021ASZ

Model No: LS2021ASZ
System Voltage: 72V & 48V
Battery: 100AH LFP Lithium
Controller:   400A AC
Motor: 5KW/7.5KW
Max.speed: 25mph(40km/h)
Range:  100kms
Climbing Ability: 25%
tp tp (3) tp (3) tp (3) tp (3) tp (3) tp (3) tp (3)
Model No: LS2021ASZ
System Voltage: 72V & 48V
Battery: 100AH LFP Lithium
Controller:   400A AC
Motor: 5KW/7.5KW
Max.speed: 25mph(40km/h)
Range:  100kms
Climbing Ability: 25%
tp tp (3) tp (3) tp (3) tp (3) tp (3) tp (3) tp (3)
Inquiry
Email
WhatsApp
Place of Origin: China
Brand Name: Lexsong
Model Number: LS2021ASZ
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Steel Crate
Delivery Time: 3-4 weeks


Description:

4 Passenger 72V Lithium Battery Off Road Electric Hunting Golf Cart LS2021ASZ, with golf bag holders at the back, 12*7 Aluminum rim, 23*10.5-12 aggressive pattern off road and 100Ah LiFePO4 lithium ion battery. It has maximum 7.5KW AC system which makes the off road hunting golf cart more powerful and efficient. Programmable Curtis AC 400A controller which makes the hunting golf car more suitable for different terrains. Front independent suspension, rear trailing arm suspension and shock absorber, and cold foaming seat cushion make the hunting golf cart more comfortable to drive. 4-wheel hydraulic disc brake, regeneration brake and electric park brake make the hunting golf cart safer to ride. Galvanized and powder coated steel chassis frame and other steel brackets, and dacromet treated fasteners make the hunting golf cart more durable and anti-corrosion. Performance wise, this hunting golf cart has 30-40km/h maximum speed, 110kms driving range per charge, 25%-30% climbing ability. Various optional accessories are available to make the hunting golf cart special and unique.


Applications:

4 Passenger 72V Lithium Battery Off Road Electric Hunting Golf Cart LS2021ASZ can be used in resorts, farm, ranch, hotels, gardens, museums, parks, airports, stations, campus and other closed areas for people moving, cruising, etc.


Specifications:

Key Components
Battery 72V100AH LFP Lithium Battery
Motor 5KW or 7.5KW AC Motor
Controller 350A/400A AC Controller (Enpower or Curtis)
Performance
Passenger capacity 4
Range (loaded) based on flat road at a speed of 20km/h (km)＊ >100
Max. speed (km/h) 32km/h (20mph)
Minimum turning radius (m) 3.5
Max. climbing ability (loaded) 25%
Max. movement after brake at speed of 20km/h ≤4m
Max. loading weight 320kgs
Net weight 520kgs
Dimensions
Overall dimensions (mm) 2980x1340x1990
Min. ground clearance (mm) 170
Body and Frame
Frame Welded steel framework to be treated in galvanization and powder coating
Body PP plastic front body + PP plastic rear body
Roof PP injection plastic or vacuum plastic
Windshield Windshield, hinged
Roof Supports Carbon Steel, galvanization and powder coating
Backrest and cushion Cold formed sponge + artificial leather + plastic armrest
Floor Anti-slip Rubber
Center storage basket
Golf bag holder
Dashboard in black plastic forward/reverse switch, battery capacity indicator, ignition key
Steering wheel Sports style, with carbon fibre finish
Beverage holders 4 cups drink holders
Glove box
Side trim Plastic
Inner rear view mirror 1 piece per cart in the middle of the windshield
Side rear view mirror Two pieces per cart
Electric system

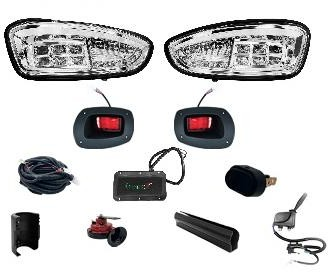

Lighting system and horn LED, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), horn.
Multimedia player+digital meter combo LCD Screen, Speedometer, Odometer, battery power meter and various indicators, and Multimedia player and 2 speakers
Reversing alarm
Charger Onboard charger, input 110V-240V~50Hz-60Hz, output 72V, 15-18A
Steering and Suspension
Steering system Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system 4-wheel hydraulic brake, front disc brake, rear drum brake, with electrical park brake and regenerative brake
Accelerator Stepless speed change
Suspension system Front independent suspension, and rear trailing arm suspension with shock absorber
Driving mode Rear axle two stage deceleration, motor direct driving
Rear axle Integrated, Aluminum cage, Gear ratio 12.76:1
Wheel & Tyre 12x7 Alumimum wheel & 23*10.5-12 off road tire


< p style="text-align:center">1.1

LED Headlight


2.1

LED Taillight


3.1

Multi-function Instrument

4.1

Dash Area

5

Sports Steering Wheel


6

Waterproof Receptacle


7.1

Front Independent Suspension

9.1

Rear Trailing arm

9

Front Disc Brake


10

Lithium Battery


11

Tinted Split Windshield


12

Plastic Seat Bottom

13.1

12x7 Aluminum rim


Competitive Advantage:

More Powerful

Our 4 Passenger 72V Lithium Battery Off Road Electric Hunting Golf Cart LS2021ASZ has 72V AC system, and the biggest motor can be 7.5KW (rated). Comparing to 36V/48V system, 72V AC is more powerful, that means our off road hunting golf carts can accelerate quicker, and run faster on slope or with full loading.

More Efficient

With the same output powerful, our off road hunting golf carts with 72V voltage needs smaller current. Smaller current means less heat emission from electric parts, so less energy consumption, so with same battery capacity, 72V off road golf carts have longer range.

Lower Life Cost

Our off road hunting golf carts are equipped with lithium battery. Lithium battery has about 5 times life cycles of lead acid battery, while the cost of our lithium battery pack is quite close to lead acid battery. That makes our off road huntinggolf carts have lower life cost.

Lower Maintenance Cost

With same capacity, our lithium battery weights about 1/3 of lead acid battery. Our off road golf carts with lithium battery is lighter than the one with lead acid battery. Less weight means less wears&tears to the off road hunting golf carts, also lithium battery is maintenance free, all those makes our off road hunting golf carts have lower maintenance cost

More Comfortable

Our off road hunting golf carts have front Macpherson Independent suspension, rear trailing arm suspension with shock absorber, and thick cold foaming sponge seat cushion which make them very comfortable to ride

Safer

Our off road hunting golf carts have 4-wheel hydraulic disc brake, electrical park brake and regenerative brake, all those make our off road hunting golf carts very safe to ride.

13

Laminated Glass Windshield

14

Laminated Glass with Wiper

15

2-point seatbelt

16

3-point seatbelt

17.1

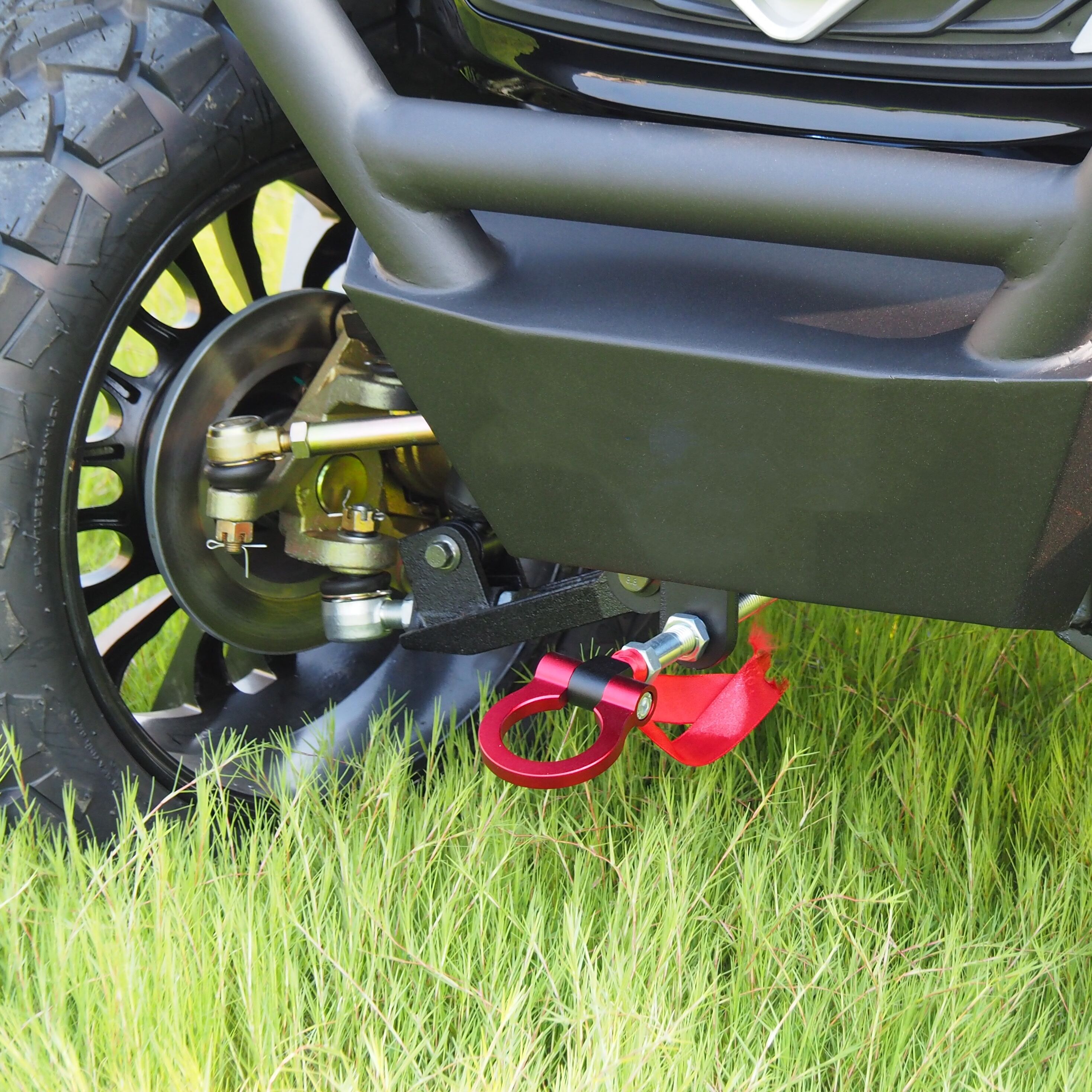

Front Brush Guard

18

Front Basket

19

2-Tone Seat

20

Pattern Seat

21

Backrest with headrest

22

Backrest cover in wood finish

23

Backrest cover in carbon fibre


24.1

Dashboard in carbon fibre finish

26

Steering Wheel in wood finish

27

Inner Rear View Mirror

28

Side mirror with turning light

29

Enclosure (Rain Cover)

30

USB port

33

Under Roof/Chassis LED light

34

12V Plug

35

Solar Panel

36

Rear Disc Brake/EM Brake

37.1

Glove box with lock door

38.1

14’ Aluminum rim


Description:

4 Passenger 72V Lithium Battery Off Road Electric Hunting Golf Cart LS2021ASZ, with golf bag holders at the back, 12*7 Aluminum rim, 23*10.5-12 aggressive pattern off road and 100Ah LiFePO4 lithium ion battery. It has maximum 7.5KW AC system which makes the off road hunting golf cart more powerful and efficient. Programmable Curtis AC 400A controller which makes the hunting golf car more suitable for different terrains. Front independent suspension, rear trailing arm suspension and shock absorber, and cold foaming seat cushion make the hunting golf cart more comfortable to drive. 4-wheel hydraulic disc brake, regeneration brake and electric park brake make the hunting golf cart safer to ride. Galvanized and powder coated steel chassis frame and other steel brackets, and dacromet treated fasteners make the hunting golf cart more durable and anti-corrosion. Performance wise, this hunting golf cart has 30-40km/h maximum speed, 110kms driving range per charge, 25%-30% climbing ability. Various optional accessories are available to make the hunting golf cart special and unique.

Applications:

4 Passenger 72V Lithium Battery Off Road Electric Hunting Golf Cart LS2021ASZ can be used in resorts, farm, ranch, hotels, gardens, museums, parks, airports, stations, campus and other closed areas for people moving, cruising, etc.

2.1

LED Taillight


3.1

Multi-function Instrument

4.1

Dash Area

5

Sports Steering Wheel


6

Waterproof Receptacle


7.1

Front Independent Suspension

9.1

Rear Trailing arm

9

Front Disc Brake


10

Lithium Battery


11

Tinted Split Windshield


12

Plastic Seat Bottom

13.1

12x7 Aluminum rim

Specifications:

Performance
Passenger capacity 4
Range (loaded) based on flat road at a speed of 20km/h (km)＊ >100
Max. speed (km/h) 32km/h (20mph)
Minimum turning radius (m) 3.5
Max. climbing ability (loaded) 25%
Max. movement after brake at speed of 20km/h ≤4m
Max. loading weight 320kgs
Net weight 520kgs
Dimensions
Overall dimensions (mm) 2980x1340x1990
Min. ground clearance (mm) 170
Body and Frame
Frame Welded steel framework to be treated in galvanization and powder coating
Body PP plastic front body + PP plastic rear body
Roof PP injection plastic or vacuum plastic
Windshield Windshield, hinged
Roof Supports Carbon Steel, galvanization and powder coating
Backrest and cushion Cold formed sponge + artificial leather + plastic armrest
Floor Anti-slip Rubber
Center storage basket
Golf bag holder
Dashboard in black plastic forward/reverse switch, battery capacity indicator, ignition key
Steering wheel Sports style, with carbon fibre finish
Beverage holders 4 cups drink holders
Glove box
Side trim Plastic
Inner rear view mirror 1 piece per cart in the middle of the windshield
Side rear view mirror Two pieces per cart
Electric system
Lighting system and horn LED, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), horn.
Multimedia player+digital meter combo LCD Screen, Speedometer, Odometer, battery power meter and various indicators, and Multimedia player and 2 speakers
Reversing alarm
Charger Onboard charger, input 110V-240V~50Hz-60Hz, output 72V, 15-18A
Steering and Suspension
Steering system Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system 4-wheel hydraulic brake, front disc brake, rear drum brake, with electrical park brake and regenerative brake
Accelerator Stepless speed change
Suspension system Front independent suspension, and rear trailing arm suspension with shock absorber
Driving mode Rear axle two stage deceleration, motor direct driving
Rear axle Integrated, Aluminum cage, Gear ratio 12.76:1
Wheel & Tyre 12x7 Alumimum wheel & 23*10.5-12 off road tire

Various Optional Accessories for Choosing

  • 13

    Laminated Glass Windshield

  • 14

    Laminated Glass with Wiper

  • 15

    2-point seatbelt

  • 16

    3-point seatbelt

  • 17.1

    Front Brush Guard

  • 18

    Front Basket

  • 19

    2-Tone Seat

  • 20

    Pattern Seat

  • 21

    Backrest with headrest

  • 22

    Backrest cover in wood finish

  • 23

    Backrest cover in carbon fibre

  • 24.1

    Dashboard in carbon fibre finish

  • 26

    Steering Wheel in wood finish

  • 27

    Inner Rear View Mirror

  • 28

    Side mirror with turning light

  • 29

    Enclosure (Rain Cover)

  • 30

    USB port

  • 33

    Under Roof/Chassis LED light

  • 34

    12V Plug

  • 35

    Solar Panel

  • 36

    Rear Disc Brake/EM Brake

  • 37.1

    Glove box with lock door

  • 38.1

    14' Aluminum rim
