4 Seater Lithium Ion Battery Powered 72V Electric Mini Golf Cart LS2020KSZ

Model No: LS2020KSZ
System Voltage: 72V & 48V
Battery: 100AH LFP Lithium
Controller:   400A AC
Motor: 5KW/17.5KW
Max.speed: 25mph(40km/h)
Range:  100kms
Climbing Ability: 25%

tp tp (3) tp (3) tp (3) tp (3) tp (3) tp (3) tp (3)
Inquiry

Place of Origin: China
Brand Name: Lexsong
Model Number: LS2020KSZ
Certification: CE
Minimum Order Quantity: 1
Packaging Details: Steel Crate
Delivery Time: 3-4 weeks


Description:

Lithium ion battery powered 72V 4 seater electric golf car, with 2 rear facing flip flop seats at the back. It has 72V/5KW AC system which makes the golf cart more powerful and efficient. Programmable Curtis AC 400A controller which makes the golf cart more suitable for different terrains. Front independent suspension, rear trailing arm suspension and shock absorber, and cold foam formed seat cushion make the golf cart more comfortable to drive. 4-wheel hydraulic disc brake, regeneration brake and electric park brake make the golf cart safer to ride. Galvanized and powder coated steel chassis frame and other steel brackets, and dacromet treated fasteners make the golf cart more durable. Performance wise, this golf cart has 30-40km/h maximum speed, 120kms driving range per charge, 25%-30% climbing ability. Various optional accessories are available to make the golf cart special and unique.


Applications:

This 4 seater electric golf carts can be used in different places, such as resorts, hotels, gardens, museums, parks, airports, stations, campus, residential communities and other closed areas for people moving, cruising, etc.


Specifications:


Key Components
Battery 72V100AH LFP Lithium Battery
Motor 5KW or 7. 5KW AC Motor
Controller 350A/400A AC Controller (Enpower or Curtis)
Performance
Passenger capacity 2+2
Range (loaded) based on flat road at a speed of 20km/h (km)* >120
Max. speed (km/h) 32km/h
Minimum turning radius (m) 3. 5
Max. climbing ability (loaded) 25%
Max. movement after brake at speed of 20km/h ≤4m
Max. loading weight 320kgs
Net weight 500kgs
Dimensions
Overall dimensions (mm) 2920X1210X1890
Body and Frame
Frame Welded steel framework to be treated in galvanization and powder coating
Body PP plastic front body + PP plastic rear body
Roof PP injection, in beige color
Windshield Windshield, hinged
Roof Supports Carbon Steel, galvanization and powder coating
Backrest and cushion Cold formed sponge + artificial leather + plastic armrest
Floor Anti-slip Rubber
Center storage basket
Golf bag holder
Dashboard in black plastic forward/reverse switch, battery capacity indicator, ignition key
Steering wheel Sports style, with carbon fibre finish
Beverage holders 4 cups drink holders
Glove box
Side trim Plastic
Inner rear view mirror 1 piece per cart in the middle of the windshield
Side rear view mirror Two pieces per cart
Electric system
Lighting system and horn LED, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), horn.
Digital Meter LCD Screen, Speedometer, Odometer, battery power meter and various indicators
Reversing alarm
Charger Onboard charger, input 110V-240V~50Hz-60Hz, output 72V, 15-18A
Steering and Suspension
Steering system Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system 4-wheel hydraulic brake, front disc brake, rear drum brake, with electrical park brake and regenerative brake

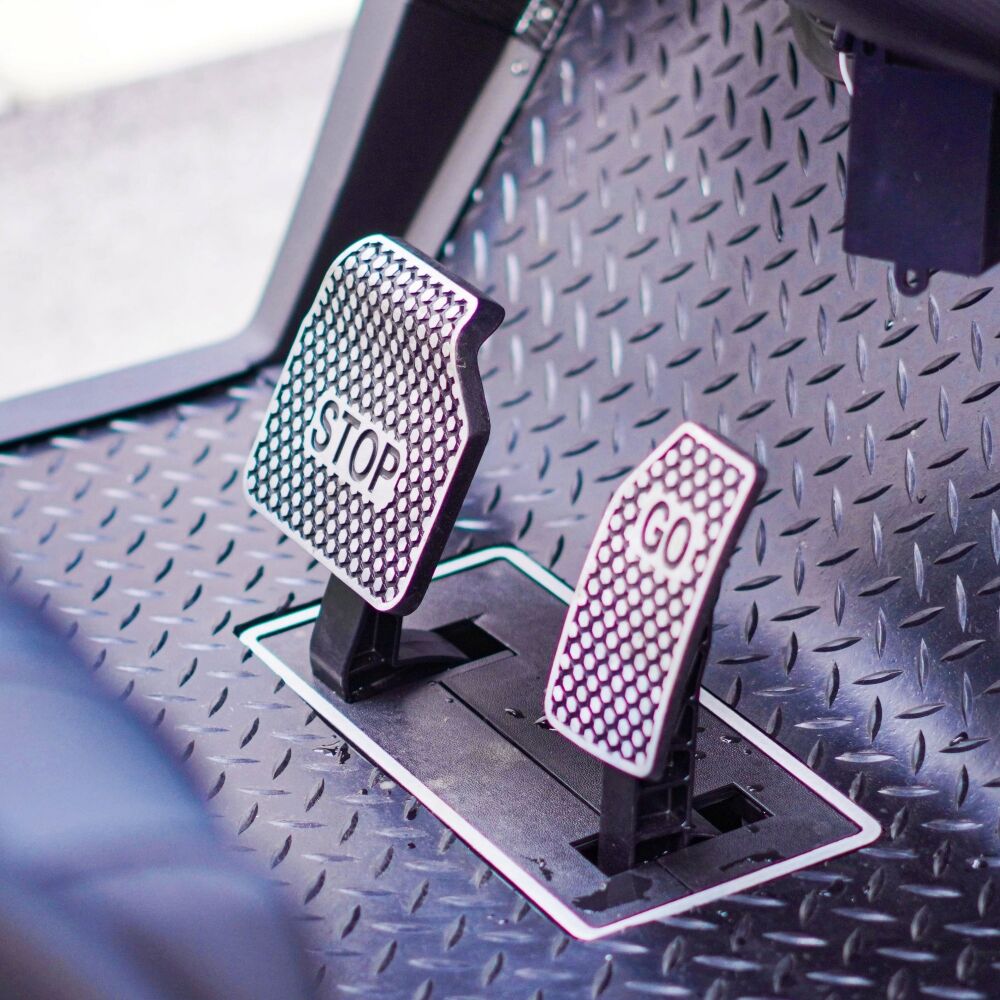

Accelerator Stepless speed change
Suspension system Front independent suspension, and rear trailing arm suspension with shock absorber
Driving mode Rear axle two stage deceleration, motor direct driving
Rear axle Integrated, Aluminum cage, Gear ratio 12. 76: 1
Wheel & Tyre 12x7 Alumimum wheel & 215/35-12 4PR


1

LED Headlight

2

LED Taillight

4

LCDDigital Meter

4

Dash Area

5

Sports Steering Wheel

6

Waterproof Receptacle

7

Front Independent Suspension

8

Front Disc Brake

9

Lithium Battery

10

Tinted Split Windshield

11

Plastic Seat Bottom

12

12’ Aluminum Wheel


Competitive Advantage:

What makes us different and better than other brands

More Powerful

Our golf carts have 72V AC system, and the biggest motor can be 7. 5KW (rated). Comparing to 36V/48V system, 72V AC is more powerful, that means our golf carts can accelerate quicker, and run faster on slope or with full loading.

More Efficient

With the same output powerful, our golf carts with 72V voltage needs smaller current. Smaller current means less heat emission from electric parts, so less energy consumption.

Lower Life Cost

Our golf carts are equipped with lithium battery. Lithium battery has about 5 times life cycles of lead acid battery, while the cost of our lithium battery pack is quite close to lead acid battery. All those make our golf carts have lower life cost.

Lower Maintenance Cost

With same capacity, our lithium battery weights about 1/3 of lead acid battery. Our golf cart with lithium battery is lighter than the one with lead acid battery. Less weight means less wears&tears to the golf cart, also lithium battery is maintenance free, all those makes our golf carts have lower maintenance cost

More Comfortable

Our golf carts have front Macpherson Independent suspension, rear trailing arm suspension with shock absorber, and thick cold foamed sponge seat cushion which make them very comfortable to ride

Safer

Our golf carts have 4-wheel hydraulic front disc rear drum brake, electric park brake and regenerative brake, all those make our golf cart very safe to ride.


13

Laminated Glass Windshield

14

Laminated Glass with Wiper

15

2-point seatbelt

16

3-point seatbelt

17

Front Brush Guard

18

Front Basket

19

2-Tone Seat

20

Pattern Seat

21

Backrest with headrest

22

Backrest cover in wood finish

23

Backrest cover in carbon fibre

24

Dashboard in wood finish

25

Dashboard in carbon fibre finish

26

Steering Wheel in wood finish

27

Inner Rear View Mirror

28

Side mirror with turning light

29

Enclosure (Rain Cover)

30

USB port

31

Touch Screen Multi-Media Player

32

Backup Camera

33

Under Roof/Chassis LED light

34

12V Plug

35

Solar Panel

36

Rear Disc Brake/EM Brake

37

Glove box with lock door



Description:

Lithium ion battery powered 72V 4 seater electric golf car, with 2 rear facing flip flop seats at the back. It has 72V/5KW AC system which makes the golf cart more powerful and efficient. Programmable Curtis AC 400A controller which makes the golf cart more suitable for different terrains. Front independent suspension, rear trailing arm suspension and shock absorber, and cold foam formed seat cushion make the golf cart more comfortable to drive. 4-wheel hydraulic disc brake, regeneration brake and electric park brake make the golf cart safer to ride. Galvanized and powder coated steel chassis frame and other steel brackets, and dacromet treated fasteners make the golf cart more durable. Performance wise, this golf cart has 30-40km/h maximum speed, 120kms driving range per charge, 25%-30% climbing ability. Various optional accessories are available to make the golf cart special and unique.


Applications:

This 4 seater electric golf carts can be used in different places, such as resorts, hotels, gardens, museums, parks, airports, stations, campus, residential communities and other closed areas for people moving, cruising, etc.


    1

    LED Headlight

    2

    LED Taillight

    4

    Digital Meter

    4

    Dash Area

    5

    Sports Steering Wheel

    6

    Waterproof Receptacle

    7

    Front Independent Suspension

    8

    Front Disc Brake

    9

    Lithium Battery

    10

    Tinted Split Windshield

    11

    Plastic Seat Bottom

    12

    12’ Aluminum Wheel


    Specifications:

    Performance
    Passenger capacity 2+2
    Range (loaded) based on flat road at a speed of 20km/h (km)* >120
    Max. speed (km/h) 32km/h
    Minimum turning radius (m) 3. 5
    Max. climbing ability (loaded) 25%
    Max. movement after brake at speed of 20km/h ≤4m
    Max. loading weight 320kgs
    Net weight 500kgs
    Dimensions
    Overall dimensions (mm) 2920X1210X1890
    Body and Frame
    Frame Welded steel framework to be treated in galvanization and powder coating
    Body PP plastic front body + PP plastic rear body
    Roof PP injection, in beige color
    Windshield Windshield, hinged
    Roof Supports Carbon Steel, galvanization and powder coating
    Backrest and cushion Cold formed sponge + artificial leather + plastic armrest
    Floor Anti-slip Rubber
    Center storage basket
    Golf bag holder
    Dashboard in black plastic forward/reverse switch, battery capacity indicator, ignition key
    Steering wheel Sports style, with carbon fibre finish
    Beverage holders 4 cups drink holders
    Glove box
    Side trim Plastic
    Inner rear view mirror 1 piece per cart in the middle of the windshield
    Side rear view mirror Two pieces per cart
    Electric system
    Lighting system and horn LED, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), horn.
    Digital Meter LCD Screen, Speedometer, Odometer, battery power meter and various indicators
    Reversing alarm
    Charger Onboard charger, input 110V-240V~50Hz-60Hz, output 72V, 15-18A
    Steering and Suspension
    Steering system Single-stage rack and pinion steering system, automatic rocker compensating function
    Brake system 4-wheel hydraulic brake, front disc brake, rear drum brake, with electrical park brake and regenerative brake
    Accelerator Stepless speed change
    Suspension system Front independent suspension, and rear trailing arm suspension with shock absorber
    Driving mode Rear axle two stage deceleration, motor direct driving
    Rear axle Integrated, Aluminum cage, Gear ratio 12. 76: 1
    Wheel & Tyre 12x7 Alumimum wheel & 215/35-12 4PR
