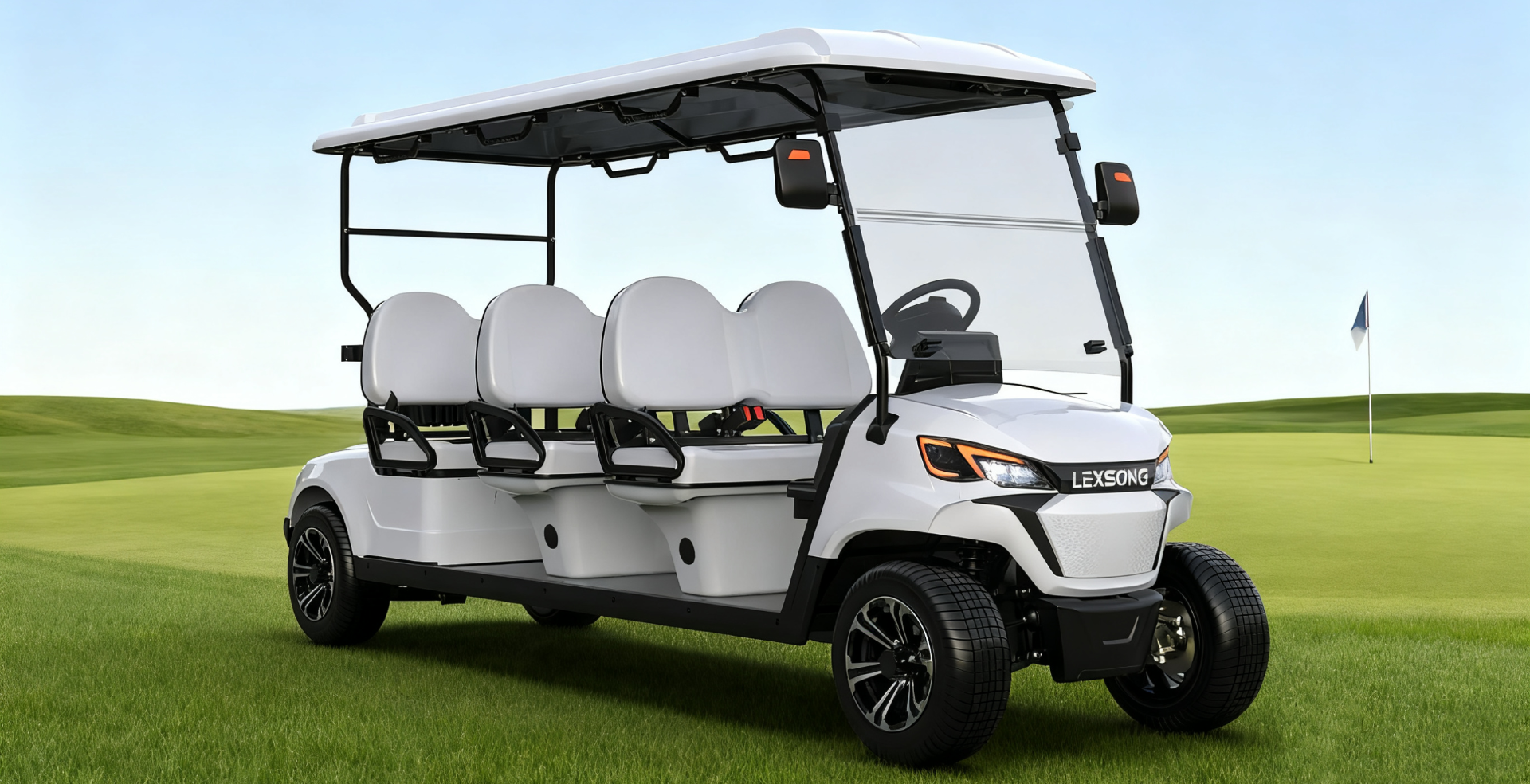

6 Seater Electric Golf Buggy for Resorts and Communities LS2063K

6 Passenger Road Legal Lithium Golf Cart

This is a spacious 6-seater golf buggy, ideal for resorts, golf courses, and sightseeing. Powered by a 72V lithium battery, it offers long range and stable performance. With independent suspension, cushioned seats, foldable windshield, LED lights, and rear flip seat for cargo or passengers, it ensures comfort, safety, and versatility.

Battery 72V150AH Lithium battery or 48V150AH lead acid battery

Motor 5KW or 7.5KW AC Motor

Passenger capacity 6

Max. climbing ability (loaded) 20%

Perl White metallic
Black metallic
Charcoal Grey metallic
Caribbean Blue non metallic
Caribbean Blue non metallic
Moon Grey non metallic
Moon Grey non metallic
Sangria Red metallic

6 Passenger Road Legal Lithium Golf Cart

This is a spacious 6-seater golf buggy, ideal for resorts, golf courses, and sightseeing. Powered by a 72V lithium battery, it offers long range and stable performance. With independent suspension, cushioned seats, foldable windshield, LED lights, and rear flip seat for cargo or passengers, it ensures comfort, safety, and versatility.

Battery 72V150AH Lithium battery or 48V150AH lead acid battery

Motor 5KW or 7.5KW AC Motor

Passenger capacity 6

Max. climbing ability (loaded) 20%

Perl White metallic
Black metallic
Charcoal Grey metallic
Caribbean Blue non metallic
Caribbean Blue non metallic
Moon Grey non metallic
Moon Grey non metallic
Sangria Red metallic

Share On:

Get a Free Quote

LS2063K Highlights

Explore the LS2063K features that let you do more.

Multifunctional console

10.1-inch large touchscreen, flexible sports steering wheel, etc. Easy to use, boosting driving experience

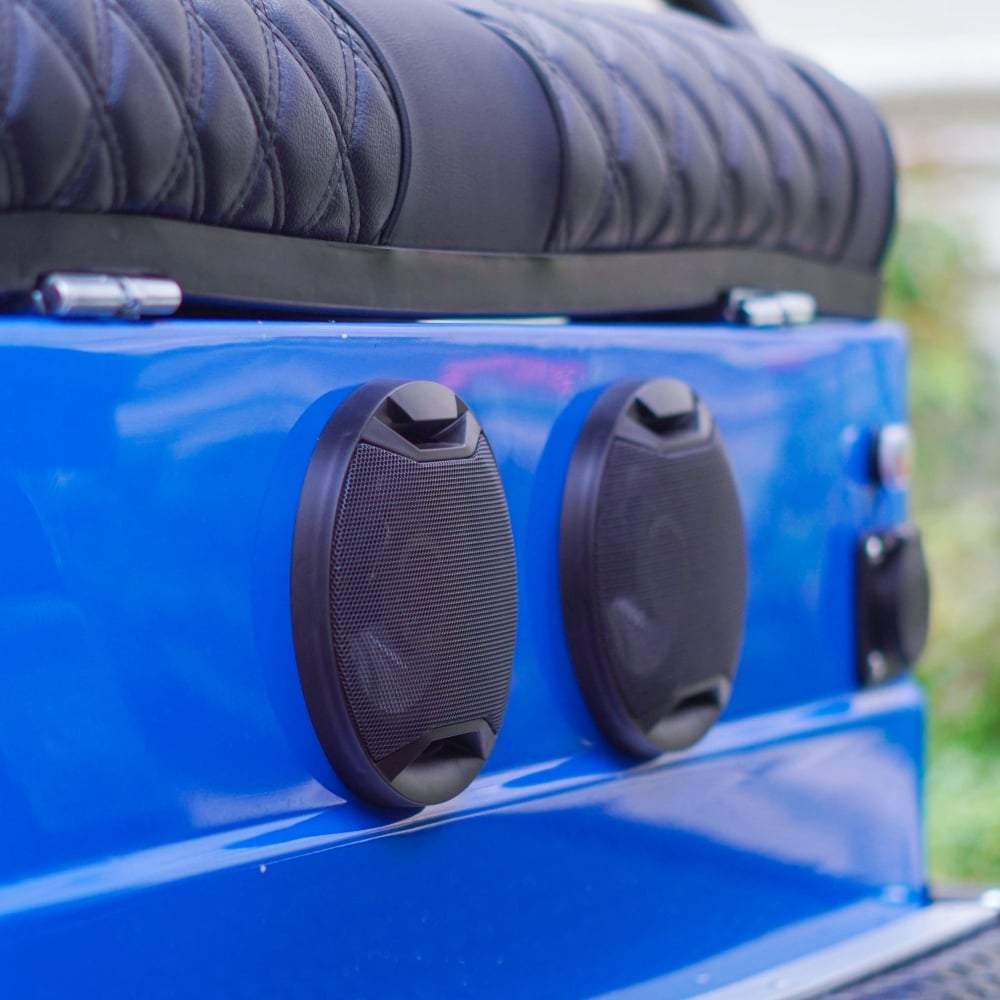

Speakers

2 high-quality speakers for clear audio output
Glove box + Beverage holders

Lockable glove box paired with 4 cup holders (2 on each side) for convenience
Brake-to-start ignition

requires the brake pedal to be pressed before the vehicle can be started or put into gear, ensuring safe startup and preventing unintended movement
EM brake

an electronically controlled electromagnetic brake that engages instantly for smooth stopping and holds the vehicle securely without manual adjustment
Charging port

rugged, dust‑ and water‑resistant charging port compatible with standard EV connectors for fast, safe, and hassle‑free recharging

Electric Powertrain

Explore our industry-leading powertrains - each with unique advantages to enhance your life.

72V Lithium

Suzhou Lexsong Electric Golf Carts is equipped with a 72V AC lithium‑ion battery system, maintenance‑free, fast‑charging, and offering stable, long‑lasting performance.

Learn more

LS2063K Specifications

Explore the details that make the LS2063K stylish, comfortable, and durable.

Explore Specs

Key Components

Battery	72V100AH LFP Lithium Battery (optional 48V150AH lead acid battery and 72V150AH Lithium battery)
Motor	5KW or 7.5KW AC Motor
Controller	400A AC Controller (Vanstar or Curtis)

Performance

Passenger capacity	6
Range (loaded) based on flat road at a speed of 20km/h (km)＊	>120
Max. speed (km/h)	32km/h (can be adjusted to 40km/h)
Minimum turning radius (m)	5.5
Max. climbing ability (loaded)	20%
Max. movement after brake at speed of 20km/h	≤4m
Max. loading weight	640kgs
Net weight	600kgs

Dimensions

Overall dimensions (mm)	3960X1210X1890
Min. ground clearance (mm)	120
Wheelbase (mm)	3200
Front wheel tread (mm)	875
Rear wheel tread (mm)	985

Body and Frame

Frame	Welded steel framework to be treated in galvanization and powder coating
Body	PP plastic front body + PP plastic rear body
Roof	PP injection (Black) or vacuum plastic
Windshield	Windshield, hinged
Roof Supports	Carbon Steel, galvanization and powder coating
Backrest and cushion	Cold foamed sponge cushion + microfiber leather in diamond pattern + plastic armrests + plastic back cover
Floor	Rubber
Dashboard in black plastic	PP plastic
Steering wheel	Sports style, with carbon fibre finish
Beverage holders	4 cups drink holders, each side 2
Glove box	/
Side trim	Plastic
Side rear view mirror	Two pieces per cart, with LED light

Electric system

Lighting system and horn	LED, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), horn.
Multimedia player+digital meter combo	LCD Screen, Speedometer, Odometer, battery power meter and various indicators, and Multimedia player and 2 speakers
Reversing alarm	\
Charger	Onboard charger, input 110V-240V~50Hz-60Hz, output 72V, 15-18A

Steering and Suspension

Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	4-wheel hydraulic disc brake, with automatic EM park brake and regenerative brake
Accelerator	Stepless speed change
Suspension system	Front double wishbone independent suspension, and rear trailing arm suspension with shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio 12.76:1
Wheel & Tyre	12x7 Alumimum rim & 215/35-12 tire

Want to know more options? Or want to customize your own company configuration?

Optional Accessories

Customize your golf cart with the best performing accessories on the market.

Electric wiper + windshield

DOT-certified laminated glass windshield with electric wiper, convenient and safe
LED light strip

integrated low‑profile LED strip lighting mounted along the vehicle’s side panels and under the roof for subtle ambient illumination and improved visibility
12V plug

built-in 12V power outlet for charging small devices or powering accessories, providing added convenience on the go
Side step

durable, non-slip side step panels for easy entry and exit, enhancing accessibility and passenger safety
USB port

dual integrated USB charging ports for fast and convenient charging of phones, tablets, and other electronic devices during travel
Golf bag holder

rear-mounted golf bag rack designed to securely hold up to two golf bags, with adjustable straps for stability during transport on the course
