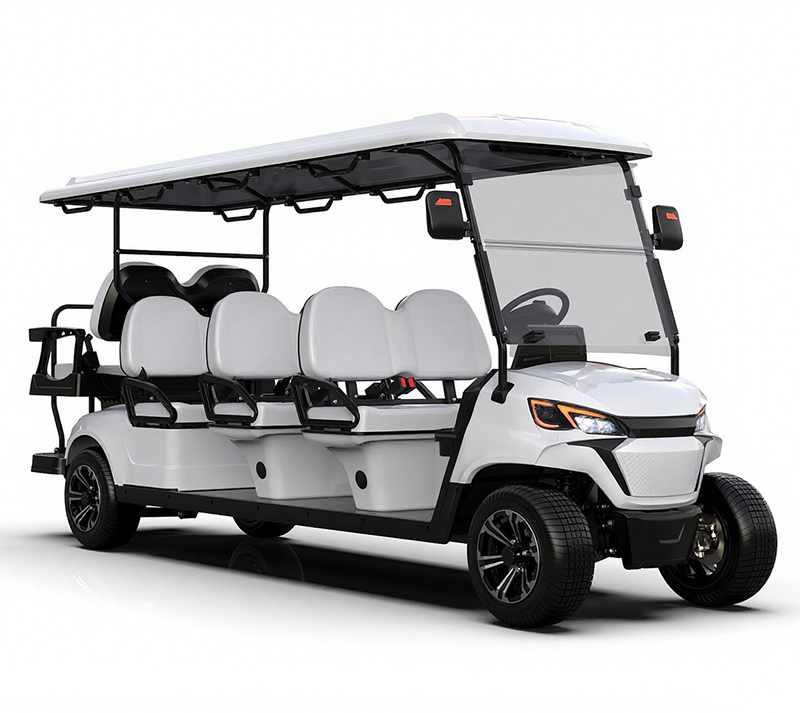

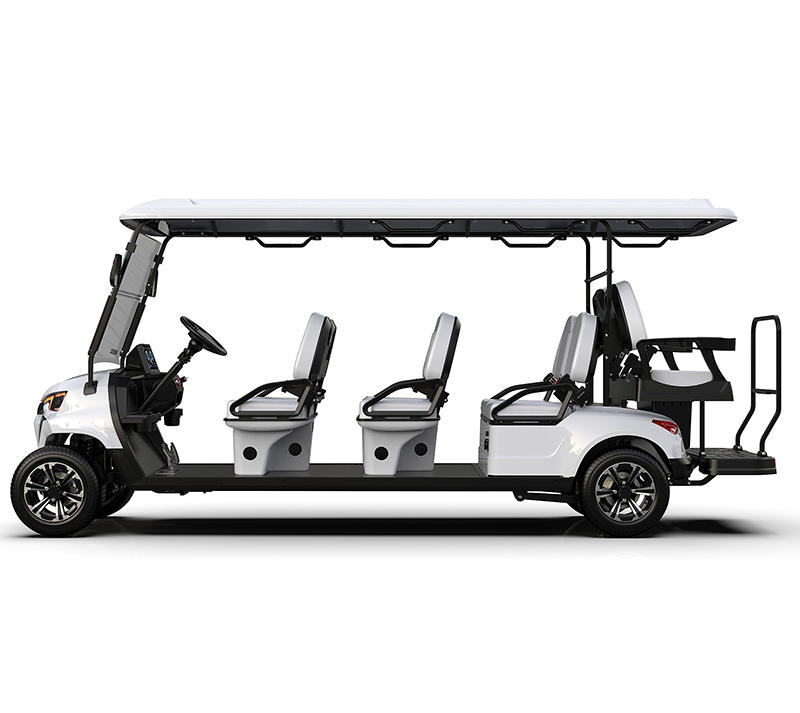

Spacious 8 Seater (6+2) Electric Golf Buggy with Lithium Battery LS2063KSZ

8 Seater Electric Limo Golf Cart

This is a spacious 8-seater (6+2) golf buggy, ideal for resorts, golf courses, and sightseeing. Powered by a 72V lithium battery, it offers long range and stable performance. With independent suspension, cushioned seats, foldable windshield, LED lights, and rear flip seat for cargo or passengers, it ensures comfort, safety, and versatility for group transport.

Battery 72V150AH Lithium battery or 48V150AH lead acid battery

Motor 5KW or 7.5KW AC Motor

Passenger capacity 6+2

Max. climbing ability (loaded) 20%

Perl White metallic
Black metallic
Charcoal Grey metallic
Caribbean Blue non metallic
Caribbean Blue non metallic
Moon Grey non metallic
Moon Grey non metallic
Sangria Red metallic

8 Seater Electric Limo Golf Cart

This is a spacious 8-seater (6+2) golf buggy, ideal for resorts, golf courses, and sightseeing. Powered by a 72V lithium battery, it offers long range and stable performance. With independent suspension, cushioned seats, foldable windshield, LED lights, and rear flip seat for cargo or passengers, it ensures comfort, safety, and versatility for group transport.

Battery 72V150AH Lithium battery or 48V150AH lead acid battery

Motor 5KW or 7.5KW AC Motor

Passenger capacity 6+2

Max. climbing ability (loaded) 20%

Perl White metallic
Black metallic
Charcoal Grey metallic
Caribbean Blue non metallic
Caribbean Blue non metallic
Moon Grey non metallic
Moon Grey non metallic
Sangria Red metallic

Share On:

Get a Free Quote

LS2063KSZ Highlights

Explore the LS2063KSZ features that let you do more.

Suspension system

Front independent suspension + rear trailing arm with shock absorbers for smooth rides
Backup cameras

Seamlessly connected to the screen for easy reversing
Parking brake

foot‑operated parking brake with a secure locking mechanism to hold the vehicle stationary and prevent rolling when parked.
Charging port

rugged, dust‑ and water‑resistant charging port compatible with standard EV connectors for fast, safe, and hassle‑free recharging
10.1" touch screen

With speedometer, mileage, battery gauge, battery voltage, current, headlight indicator, emergency light indicator, turn signal indicator,gear position light, and multimedia player (radio, bluetooth, MP3, SD card, USB, video, etc.)
Aesthetic front styling

elegantly contoured front end with smooth lines and a bold grille design for an eye‑catching, modern appearance

Electric Powertrain

Explore our industry-leading powertrains - each with unique advantages to enhance your life.

72V Lithium

Suzhou Lexsong Electric Golf Carts is equipped with a 72V AC lithium‑ion battery system, maintenance‑free, fast‑charging, and offering stable, long‑lasting performance.

Learn more

LS2063KSZ Specifications

Explore the details that make the LS2063KSZ stylish, comfortable, and durable.

Explore Specs

Key Components

Battery	72V100AH LFP Lithium Battery (optional 48V150AH lead acid battery and 72V150AH Lithium battery)
Motor	5KW or 7.5KW AC Motor
Controller	400A AC Controller (Vanstar or Curtis)

Performance

Passenger capacity	6+2
Range (loaded) based on flat road at a speed of 20km/h (km)＊	>120
Max. speed (km/h)	32km/h (can be adjusted to 40km/h)
Minimum turning radius (m)	5.5
Max. climbing ability (loaded)	20%
Max. movement after brake at speed of 20km/h	≤4m
Max. loading weight	640kgs
Net weight	600kgs

Dimensions

Overall dimensions (mm)	3960X1210X1890
Min. ground clearance (mm)	120
Wheelbase (mm)	3200
Front wheel tread (mm)	875
Rear wheel tread (mm)	985

Body and Frame

Frame	Welded steel framework to be treated in galvanization and powder coating
Body	PP plastic front body + PP plastic rear body
Roof	PP injection (Black) or vacuum plastic
Windshield	Windshield, hinged
Roof Supports	Carbon Steel, galvanization and powder coating
Backrest and cushion	Cold foamed sponge cushion + microfiber leather in diamond pattern + plastic armrests + plastic back cover
Floor	Rubber
Dashboard in black plastic	PP plastic
Steering wheel	Sports style, with carbon fibre finish
Beverage holders	4 cups drink holders, each side 2
Glove box	/
Side trim	Plastic
Side rear view mirror	Two pieces per cart, with LED light

Electric system

Lighting system and horn	LED, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), horn.
Multimedia player+digital meter combo	LCD Screen, Speedometer, Odometer, battery power meter and various indicators, and Multimedia player and 2 speakers
Reversing alarm	\
Charger	Onboard charger, input 110V-240V~50Hz-60Hz, output 72V, 15-18A

Steering and Suspension

Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	4-wheel hydraulic disc brake, with automatic EM park brake and regenerative brake
Accelerator	Stepless speed change
Suspension system	Front double wishbone independent suspension, and rear trailing arm suspension with shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio 12.76:1
Wheel & Tyre	12x7 Alumimum rim & 215/35-12 tire

Want to know more options? Or want to customize your own company configuration?

Optional Accessories

Customize your golf cart with the best performing accessories on the market.

Interior rearview mirror

Extended interior rearview mirror, clearer rear view
Roof basket

Heightened and enlarged, firm, spacious and easy to store items, more worry-free
Rear under‑seat ice bucket

insulated cooler mounted beneath the rear seat for convenient, space‑saving beverage storage
Seat back armrests

ergonomically contoured armrests integrated into the seat backs to provide passengers with extra comfort and support
Soundbar

integrated high‑fidelity soundbar mounted under the roof for immersive, evenly distributed audio throughout the cabin
One-button start

convenient push-button ignition system for quick, effortless engine start-up without the need for a traditional key
