2025 New Design 6 Seats Electric Golf Cart LS2043KSZ

Place of Origin:	China
Brand Name:	Lexsong
Model Number:	LS2043KSZ
Certification:	CE
Minimum Order Quantity:	1
Packaging Details:	Steel Crate
Delivery Time:	3-4 weeks

Place of Origin:	China
Brand Name:	Lexsong
Model Number:	LS2043KSZ
Certification:	CE
Minimum Order Quantity:	1
Packaging Details:	Steel Crate
Delivery Time:	3-4 weeks

Inquiry

Description:

2025 New Design 6 Seats Electric Golf Cart LS2043KSZ, rear facing flip flop seat at the back for carrying either passengers or goods. It has 72V/5KW AC system which makes the golf cart more powerful and efficient. Programmable AC 400A controller which makes the golf buggy more suitable for different terrains. Front double wishbone independent suspension, rear trailing arm suspension and shock absorber, and cold foam formed seat cushion make the golf buggy more comfortable to drive. 4-wheel hydraulic disc brake, regeneration brake and electromagnetic park brake make the golf buggy safer to ride. Galvanized and powder coated steel chassis frame and other steel brackets, and dacromet treated fasteners make the golf buggy more durable. Performance wise, this golf buggy has 30-40km/h maximum speed, 120kms driving range per charge, 25%-30% climbing ability. 100-150Ah lithium battery can be installed. Various optional accessories are available to make the golf buggy special and unique.

Applications:

This 2025 New Design 6 Seats Electric Golf Cart can be used in difference areas, such as resorts, hotels, gardens, museums, parks, airports, stations, campus and other closed areas for people moving, cruising, etc.

LED Headlight

LED Taillight

Multi-function Instrument

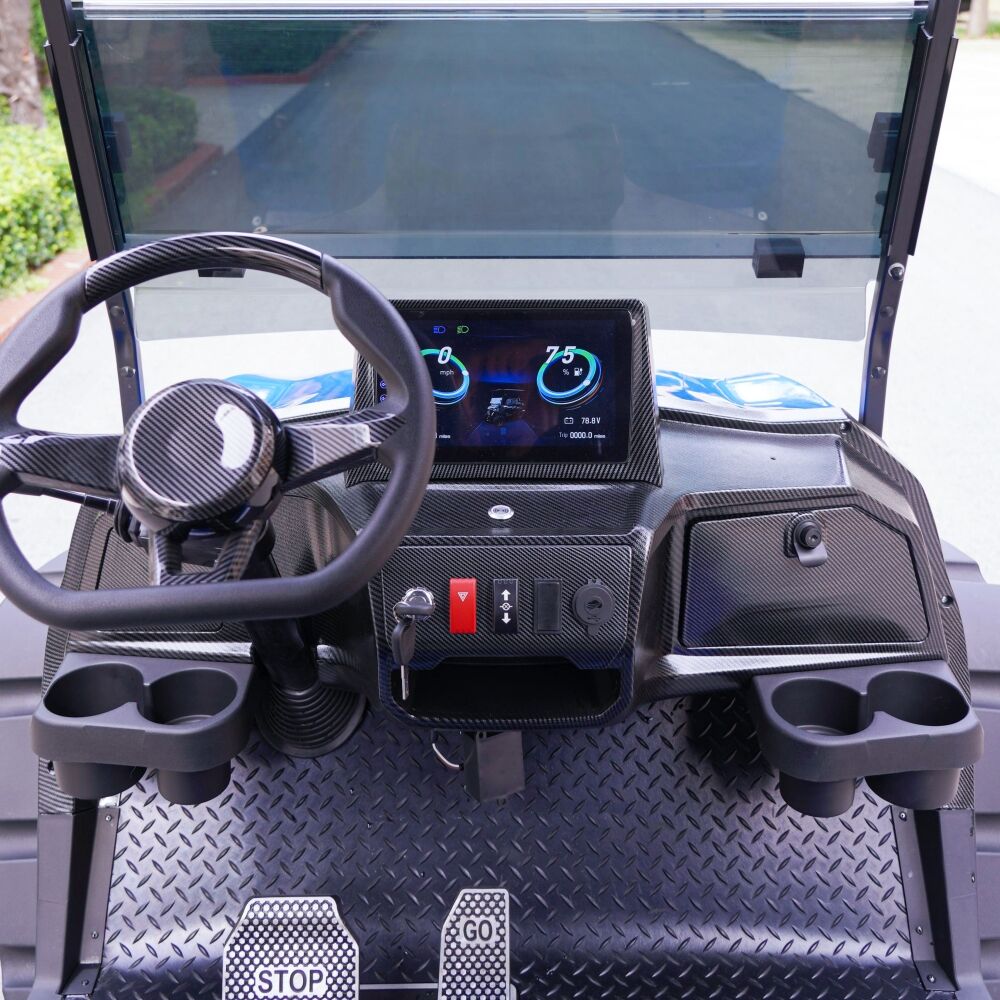

Dash Area

Sports Steering Wheel

Waterproof Receptacle

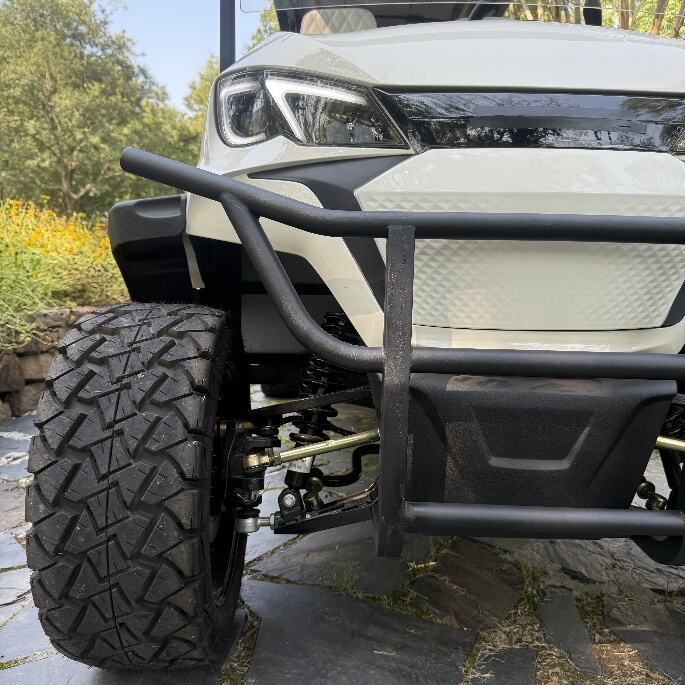

Front Independent Suspension

Rear Trailing Arm Suspension

Front Disc Brake

Lithium Battery

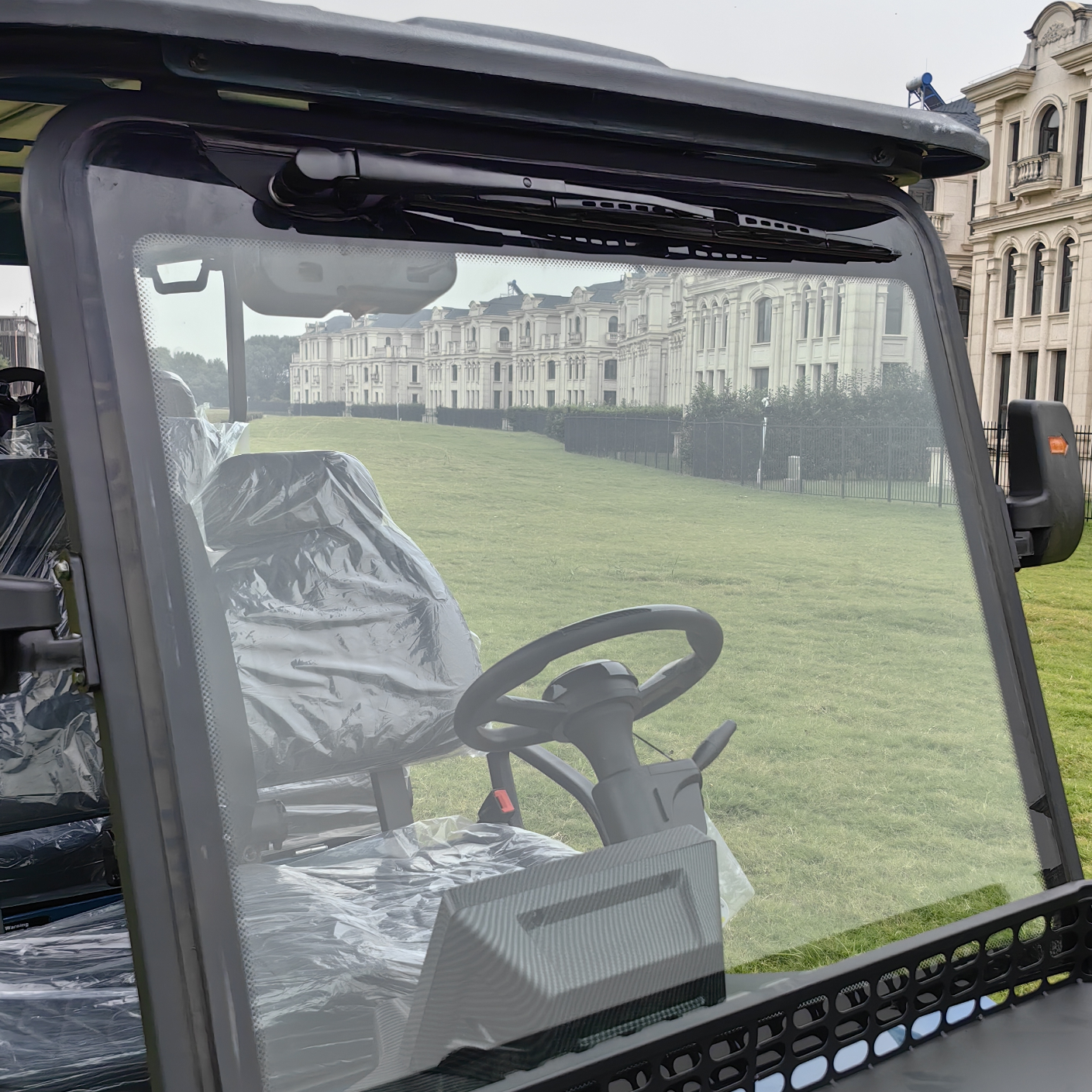

Tinted Split Windshield

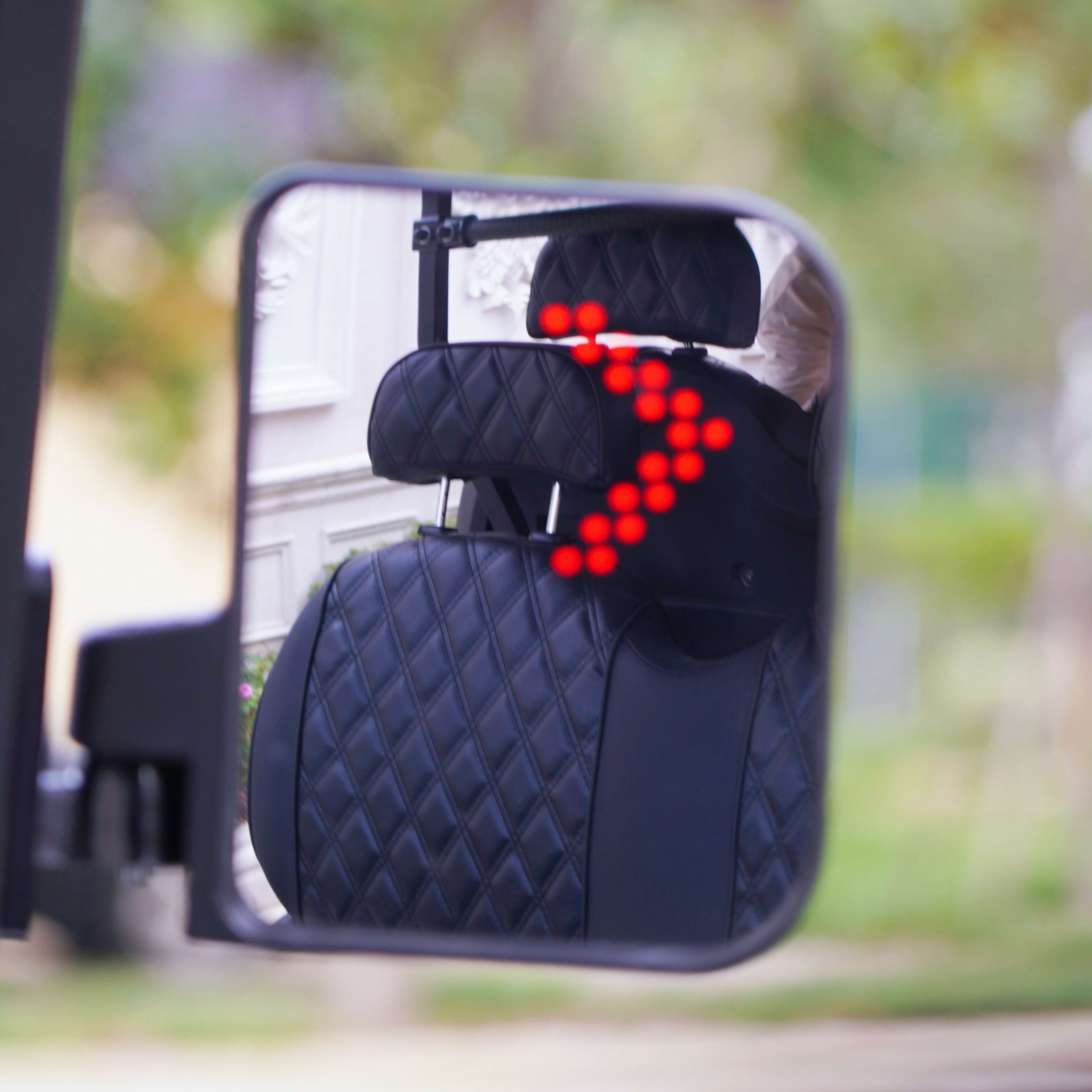

Side mirror with LED light

Key Components
Battery	72V100AH LFP Lithium Battery (optional 48V150AH lead acid battery and 72V150AH Lithium battery)
Motor	5KW or 7.5KW AC Motor
Controller	400A AC Controller (Vanstar or Curtis)
Performance
Passenger capacity	4+2
Range (loaded) based on flat road at a speed of 20km/h (km)＊	>100
Max. speed (km/h)	32km/h (can be adjusted to 40km/h)
Minimum turning radius (m)	4.5
Max. climbing ability (loaded)	25%-30%
Max. movement after brake at speed of 20km/h	≤4m
Max. loading weight	480kgs
Net weight	580kgs
Dimensions
Overall dimensions (mm)	3620X1210X1890
Body and Frame
Frame	Welded steel framework to be treated in galvanization and powder coating
Body	PP plastic front body + PP plastic rear body
Roof	PP injection, in beige color
Windshield	Windshield, hinged
Roof Supports	Carbon Steel, galvanization and powder coating

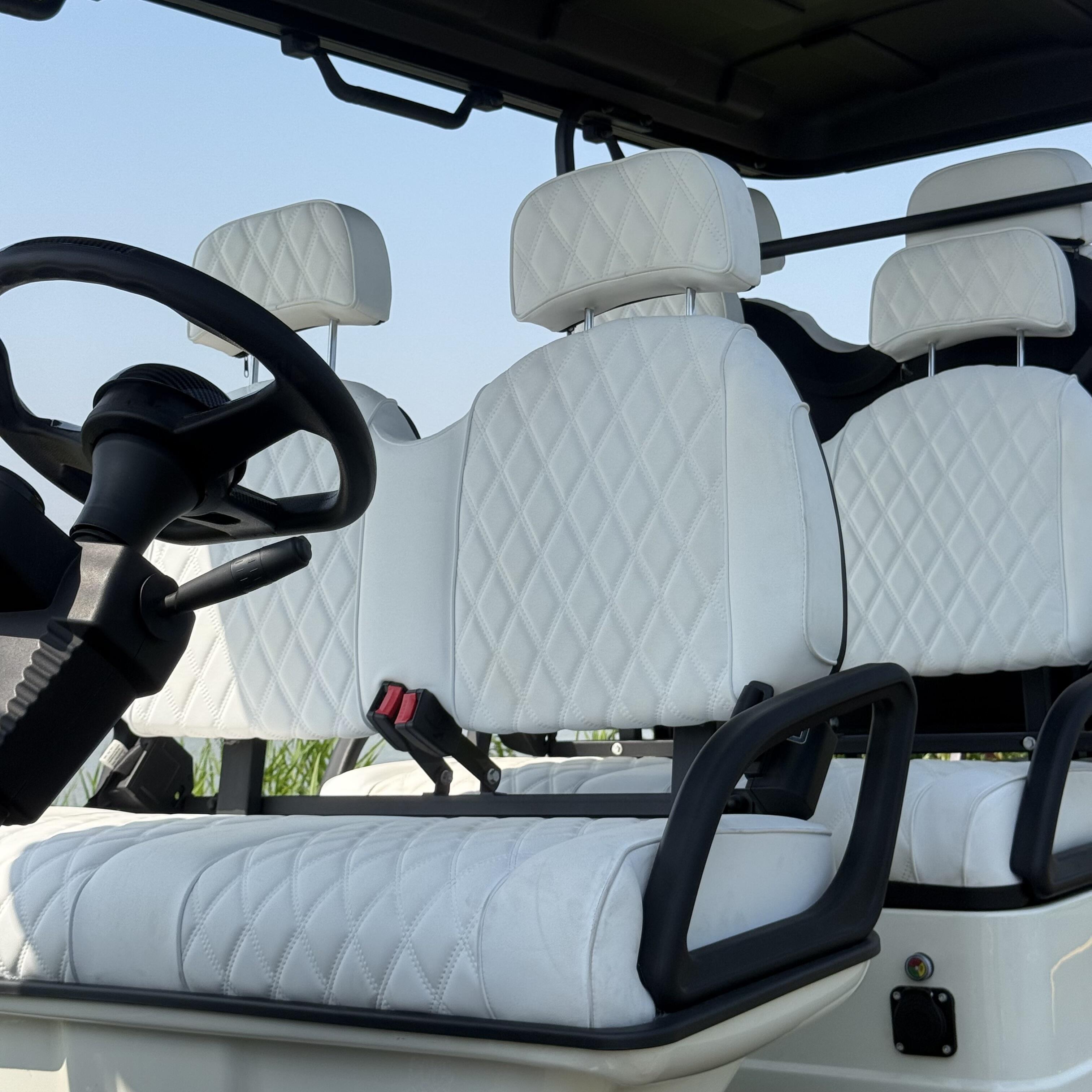

Backrest and cushion	Cold formed sponge + mirco-fibre leather + plastic armrest
Floor	Anti-slip Rubber

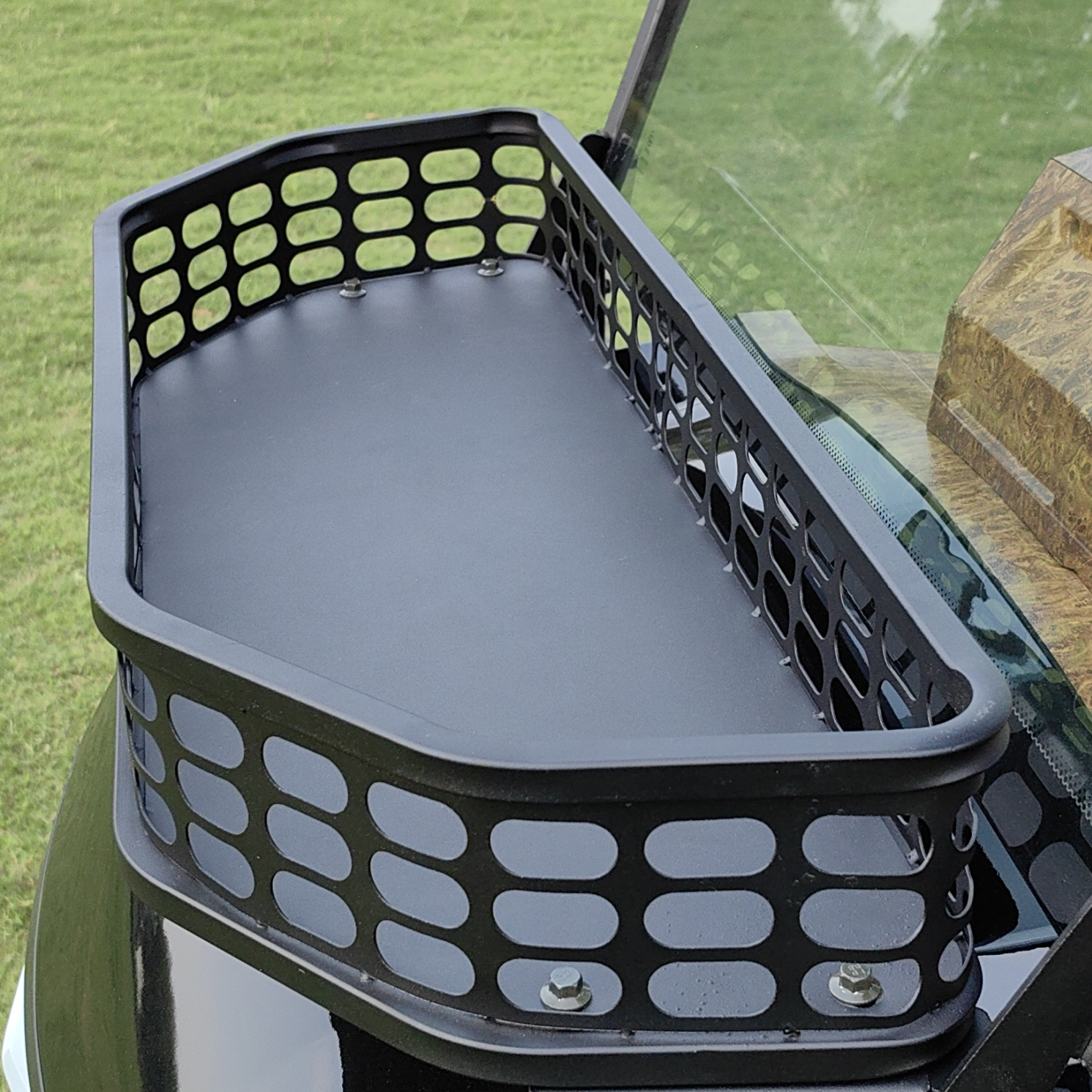

Center storage basket	included
Golf bag holder	included
Dashboard in black plastic	forward/reverse switch, battery capacity indicator, ignition key
Steering wheel	Sports style, with carbon fibre finish
Beverage holders	4 cups drink holders

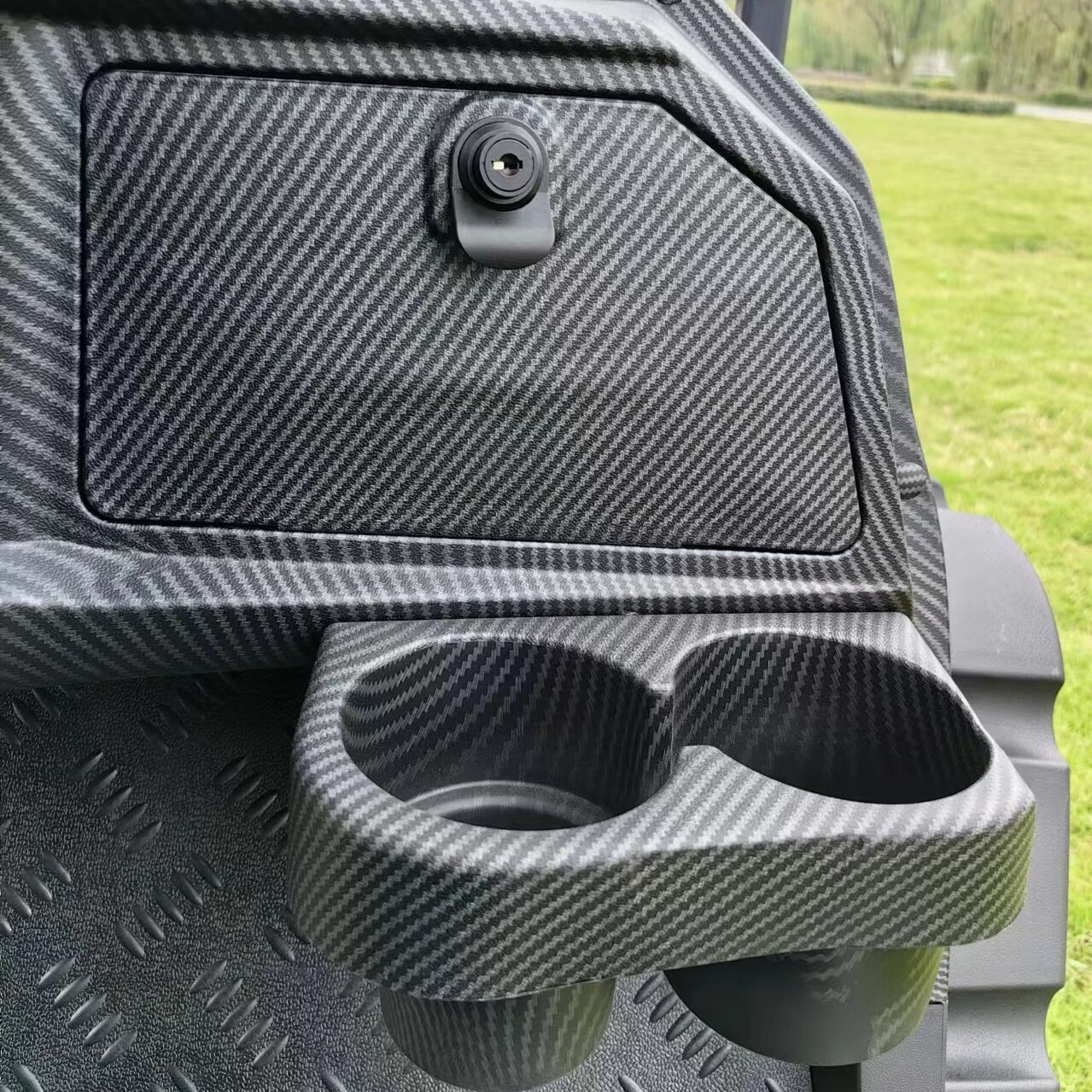

Glove box	With lock
Side trim	Plastic
Side rear view mirror	Two pieces per cart, with LED light
Electric system
Lighting system and horn	LED, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), horn.
Multimedia player+digital meter combo	LCD Screen, Speedometer, Odometer, battery power meter and various indicators, and Multimedia player and 2 speakers
Reversing alarm	\
Charger	Onboard charger, input 110V-240V~50Hz-60Hz, output 72V, 15-18A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	4-wheel hydraulic disc brake, with automatic EM park brake and regenerative brake
Accelerator	Stepless speed change
Suspension system	Front double wishbone independent suspension, and rear trailing arm suspension with shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Aluminum cage, Gear ratio 12.31:1
Wheel & Tyre	12x7 Alumimum wheel & 215/35-12 4PR
