LS9040HF Electric Small Pickup truck
| Model No: | LS9040HF |
| System Voltage: | 72V & 48V |
| Battery: | 5*12V120AH Lead Acid Battery |
| Controller: | Inpower (Chinese Brand) AC Controller |
| Motor: | 60V/3KW AC Motor |
| Max.speed: | 45km/h |
| Driving Range | 90km (no load in summer) |
| Climbing Ability: | 20% |
| Model No: | LS9040HF |
| System Voltage: | 72V & 48V |
| Battery: | 5*12V120AH Lead Acid Battery |
| Controller: | Inpower (Chinese Brand) AC Controller |
| Motor: | 60V/3KW AC Motor |
| Max.speed: | 45km/h |
| Driving Range | 90km (no load in summer) |
| Climbing Ability: | 20% |
| Place of Origin: | China |
| Brand Name: | Lexsong |
| Model Number: | LS9040HF |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Steel Crate |
| Delivery Time: | 3-4 weeks |
Description:
Factory Supply Brand New Cheap Price Electric Mini Pickup Truck LS9040HF has 60V/3KW AC system and 120Ah Maintenance Free Lead acid battery. It has plastic doors. It has electric power system which make steering very easy. It also has 4-wheel hydraulic front disc rear drum brake which ensure efficient braking force and safety. The chassis frame of the electric mini pickup is galvanized and powder coated which ensure the anti-rust capability. Front laminated glass windshield with wiper ensures the visibility of the electric flatbed truck while driving. Digital instrument displays all necessary information of the electric mini pickup o the driver. The max.speed of this electric flatbed truck is 40km/h. The autonomy is more than 80kms per charge.
Applications:
Factory Supply Brand New Cheap Price Electric Mini Pickup Truck LS9040HFcan be used in resorts, hotels, gardens, museums, parks, airports, stations, campus and other closed areas for cargo delivery
Specifications:
| Key Components | |
| Battery | 5*12V120AH Maintenance Free Lead Acid Battery (LFP lithium battery is available) |
| Motor | 3KW AC Motor |
| Controller | AC controller |
| Performance | |
| Passenger capacity | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)＊ | >90 |
| Max. speed (km/h) | 45 |
| Minimum turning radius (m) | 3.8 |
| Max. climbing ability (loaded) | 20% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max. loading weight | 600kgs |
| Net weight | 560kgs |
| Dimensions | |
| Overall dimensions (mm) | 2900x1380x1620mm |
| Rear cargo box dimensions (mm) | 1000*1200*300mm |
| Body and Frame | |
| Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP,PC,ABS injection molding cover |
| Body structure | Integral frame structure |
| Door | Plastic with steel frame |
| Front Windshield | Laminated glass, with wiper |
| Side window | Safety glass, manual slided |
| Cabin top | Safety glass, can be opened |
| Backrest and cushion | sponge + artificial leather, adjustable |
| Floor | Aluminum |
| Seatbelt | Drive/copilot retractable safety belt, 3-point |
| Dashboard | forward/reverse switch, battery capacity indicator, ignition key |
| Side rear view mirror | Two pieces per cart |
| Electric system | |
| Lighting system and horn | LED lights, including headlight, taillight, turning light; with 60V/12V DC/DC converter; electric horn |
| Digital Meter | With battery power meter, speedometer, odometer and various indicators |
| Reversing alarm | |
| Audio system | Radio with USB/SD adaptor, with 2 speakers |
| Charger | Onboard charger, input 110V-240V~50Hz-60Hz, output 60V, 15-18A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic brake, front disc brake, rear drum brake, with hand park brake |
| Accelerator | Stepless speed change |
| Suspension system | Front McPerson independent Rear integral shock damping |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | 145/70 R12 Tubeless Tire |

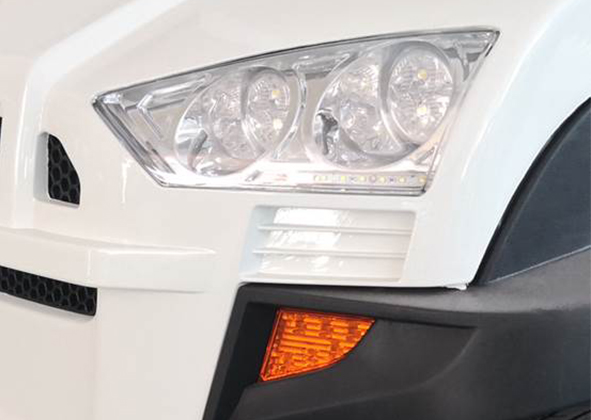

Headlight

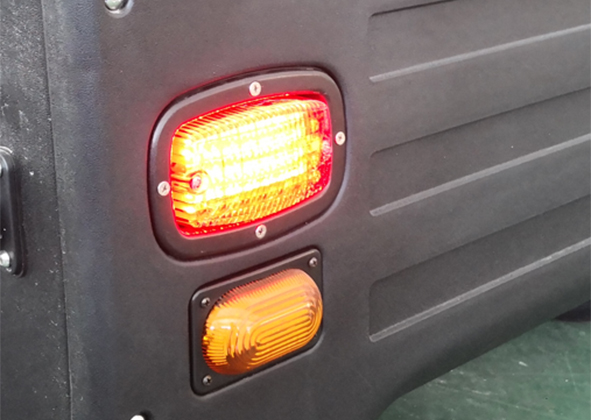

Taillight

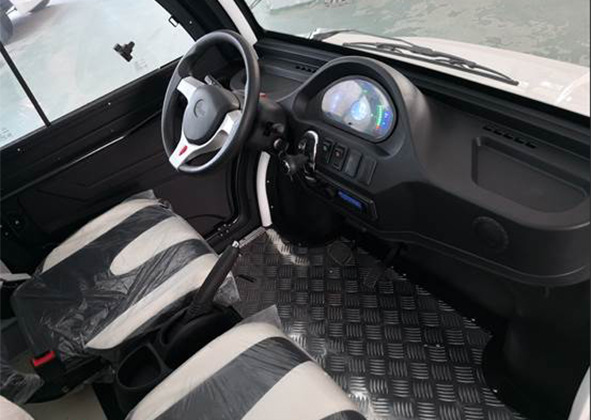

Dash Area

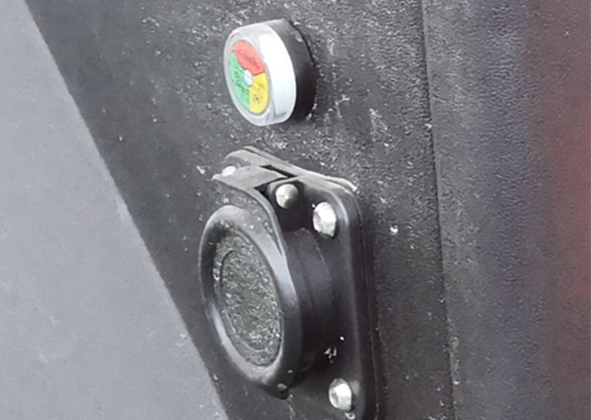

Waterproof Receptacle

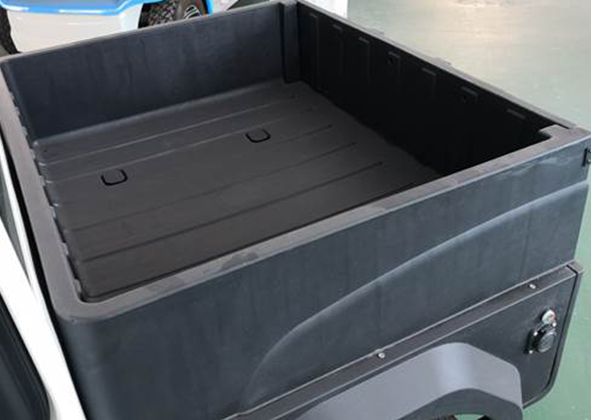

Plastic Cargo Box

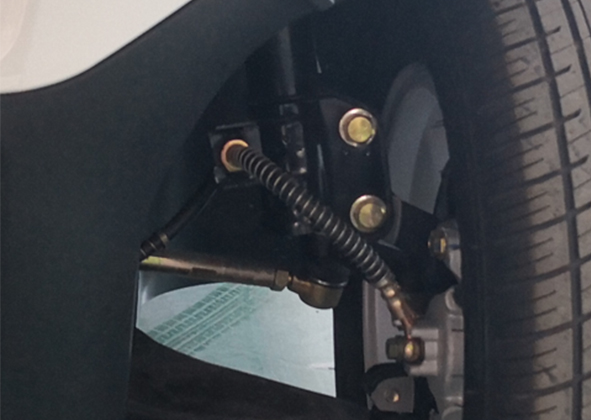

Front suspension
Competitive Advantage:
What makes us different and better than other brands
Easier to Drive
Our electric mini pickup truck has electric power steering system as standard which makes operating easier.
Safer
Our electric dump truck has 4-wheel hydraulic brake, front disc and rear drum brake
Lower Maintenance Cost
The batteries are sealed and maintenance free, which makes maintenance easier and cheaper.
Description:
Factory Supply Brand New Cheap Price Electric Mini Pickup Truck LS9040HF has 60V/3KW AC system and 120Ah Maintenance Free Lead acid battery. It has plastic doors. It has electric power system which make steering very easy. It also has 4-wheel hydraulic front disc rear drum brake which ensure efficient braking force and safety. The chassis frame of the electric mini pickup is galvanized and powder coated which ensure the anti-rust capability. Front laminated glass windshield with wiper ensures the visibility of the electric flatbed truck while driving. Digital instrument displays all necessary information of the electric mini pickup o the driver. The max.speed of this electric flatbed truck is 40km/h. The autonomy is more than 80kms per charge.
Applications:
Factory Supply Brand New Cheap Price Electric Mini Pickup Truck LS9040HFcan be used in resorts, hotels, gardens, museums, parks, airports, stations, campus and other closed areas for cargo delivery.
Specifications:
| Place of Origin: | China |
| Brand Name: | Lexsong |
| Model Number: | LS9040HF |
| Certification: | CE |
| Minimum Order Quantity: | 4 |
| Packaging Details: | Steel Crate |
| Delivery Time: | 3-4 weeks |
Description:
Factory Supply Brand New Cheap Price Electric Mini Pickup Truck LS9040HF has 60V/3KW AC system and 120Ah Maintenance Free Lead acid battery. It has plastic doors. It has electric power system which make steering very easy. It also has 4-wheel hydraulic front disc rear drum brake which ensure efficient braking force and safety. The chassis frame of the electric mini pickup is galvanized and powder coated which ensure the anti-rust capability. Front laminated glass windshield with wiper ensures the visibility of the electric flatbed truck while driving. Digital instrument displays all necessary information of the electric mini pickup o the driver. The max.speed of this electric flatbed truck is 40km/h. The autonomy is more than 80kms per charge.
Applications:
Factory Supply Brand New Cheap Price Electric Mini Pickup Truck LS9040HFcan be used in resorts, hotels, gardens, museums, parks, airports, stations, campus and other closed areas for cargo delivery
Specifications:
| Key Components | |
| Battery | 5*12V120AH Lead Acid Battery |
| Motor | 60V/3KW AC Motor |
| Controller | Inpower (Chinese Brand) AC Controller |
| Performance | |
| Passenger capacity | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)＊ | >90 |
| Max. speed (km/h) | 45 |
| Minimum turning radius (m) | 3.8 |
| Max. climbing ability (loaded) | 20% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max. loading weight | 600kgs |
| Net weight | 560kgs |
| Dimensions | |
| Overall dimensions (mm) | 2900x1380x1620mm |
| Rear cargo box dimensions (mm) | 1000*1200*300mm |
| Body and Frame | |
| Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP,PC,ABS injection molding cover |
| Body structure | Integral frame structure |
| Door | Plastic with steel frame |
| Front Windshield | Laminated glass, with wiper |
| Side window | Safety glass, manual slided |
| Cabin top | Safety glass, can be opened |
| Backrest and cushion | sponge + artificial leather, adjustable |
| Floor | Aluminum |
| Seatbelt | Drive/copilot retractable safety belt, 3-point |
| Dashboard | forward/reverse switch, battery capacity indicator, ignition key |
| Side rear view mirror | Two pieces per cart |
| Electric system | |
| Lighting system and horn | LED lights, including headlight, taillight, turning light; with 60V/12V DC/DC converter; electric horn |
| Digital Meter | With battery power meter, speedometer, odometer and various indicators |
| Audio system | Radio with USB/SD adaptor, with 2 speakers |
| Charger | Input 100V-240V, Output 60V/20A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic disc brake, with hand parking brake |
| Accelerator | Stepless speed change |
| Suspension system | Front McPerson independent Rear integral shock damping |
| Driving mode | RWD, motor direct drive |
| Wheel & Tyre | 12' Aluminm-alloy Rim |
